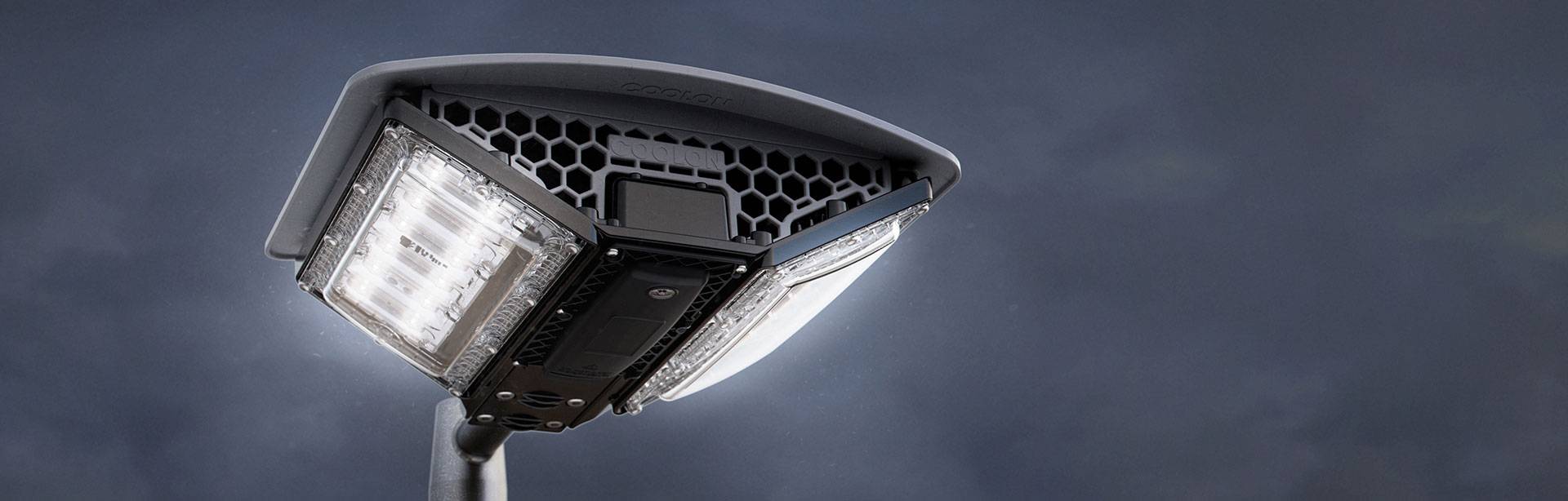

DLK — LED Conveyor / Area Light | Industrial

4,966 – 7,066 lm

62/69W

The original, highly reliable, field-proven conveyor light

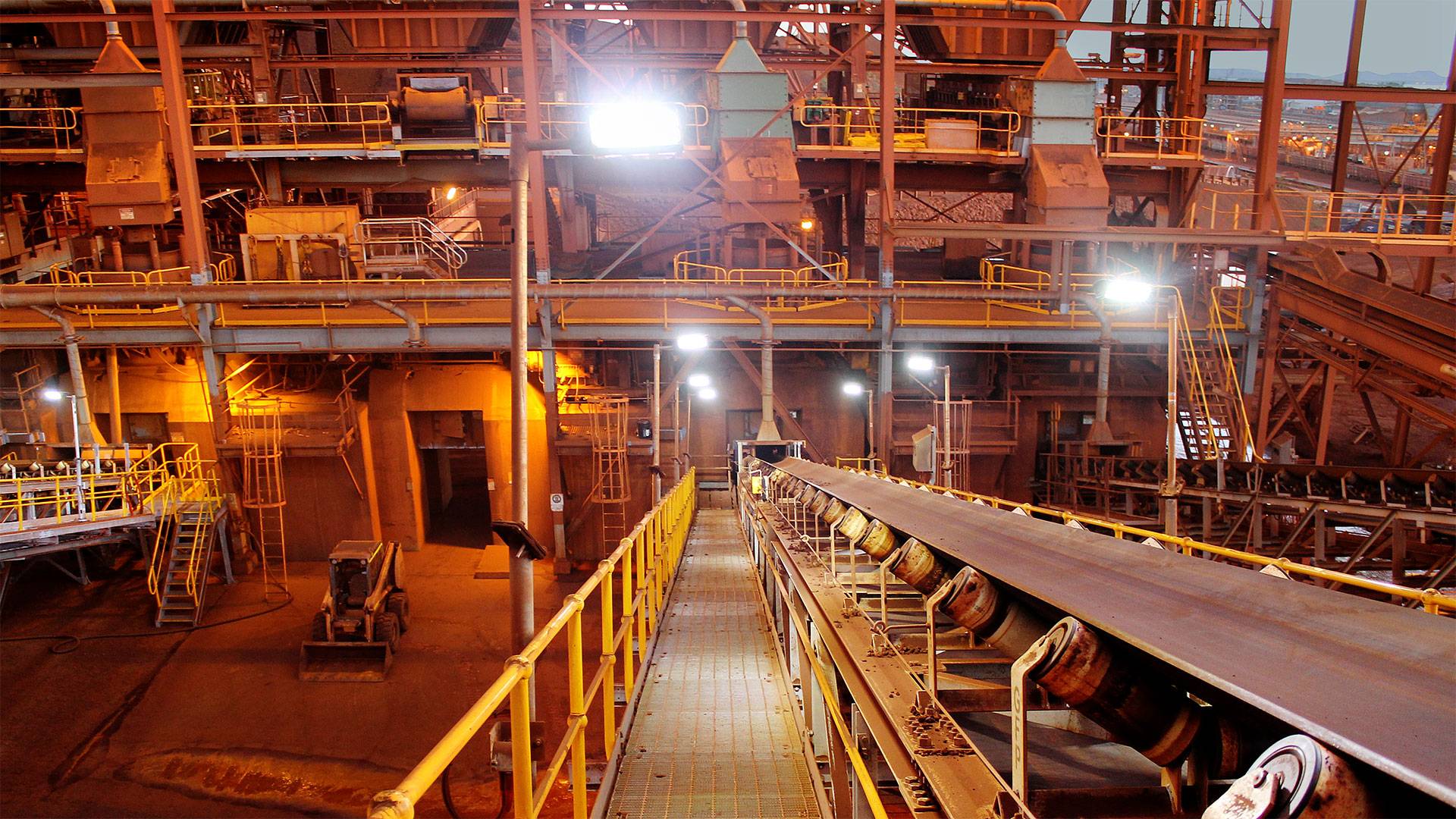

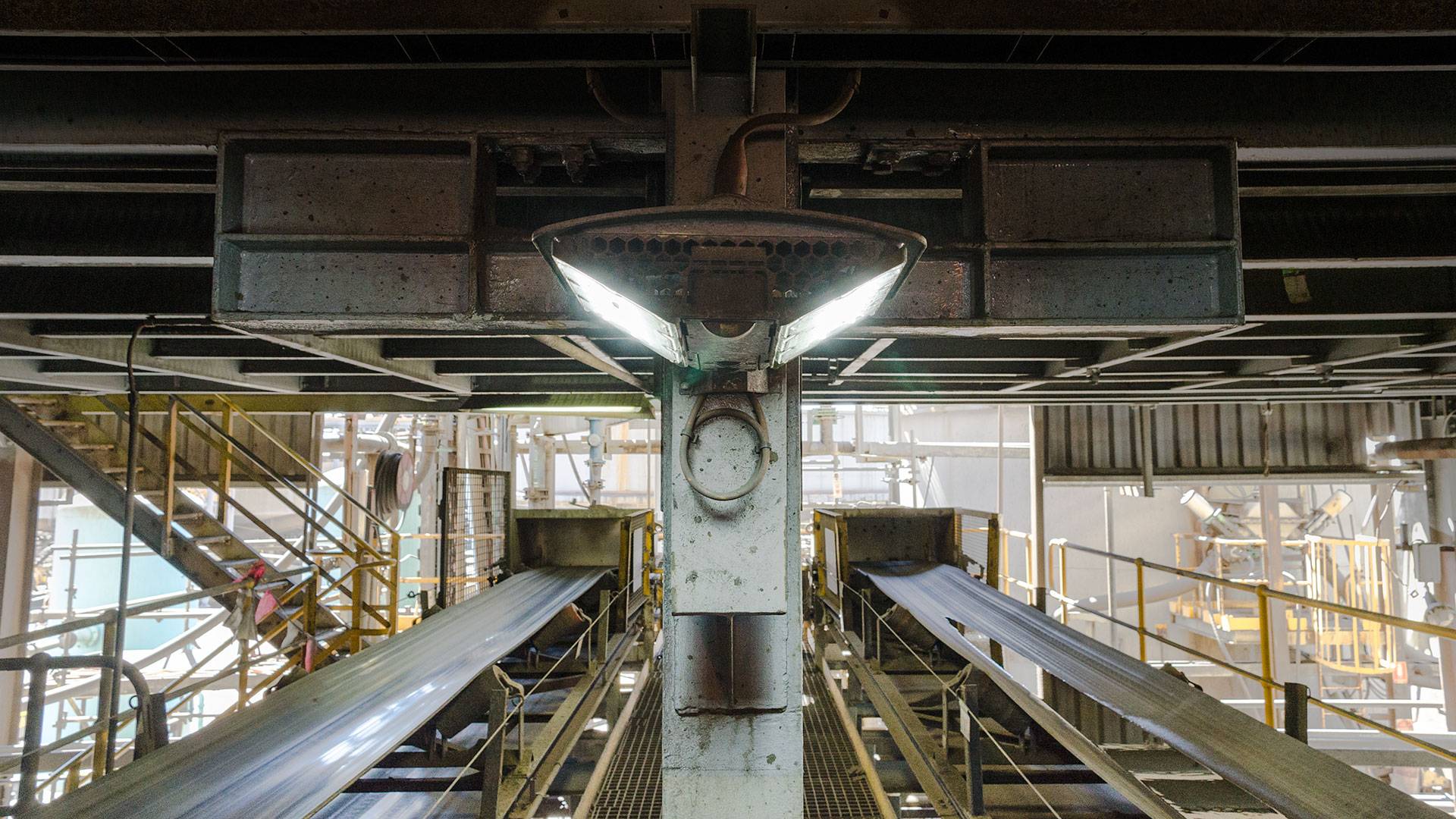

DLK is designed to provide the most energy-efficient way of illuminating industrial conveyors and walkways, capable of delivering the required minimum of 40 lux with an average of 80 lux when spaced as far as 12m apart with a typical installation height of 2.7m and a 5-degree tilt. Raising the bar of performance and efficiency for industrial conveyor and walkway lighting.

The robust unibody design is both lightweight and versatile with the flexibility to fit many industry-standard spigot mount installations. Optional in-built daylight sensor will perform automatic switching between day and night modes to substantially decrease power consumption. Also available in Wildlife / Turtle Friendly Amber.

Designed for

Conveyors
Walkways
Stairwells

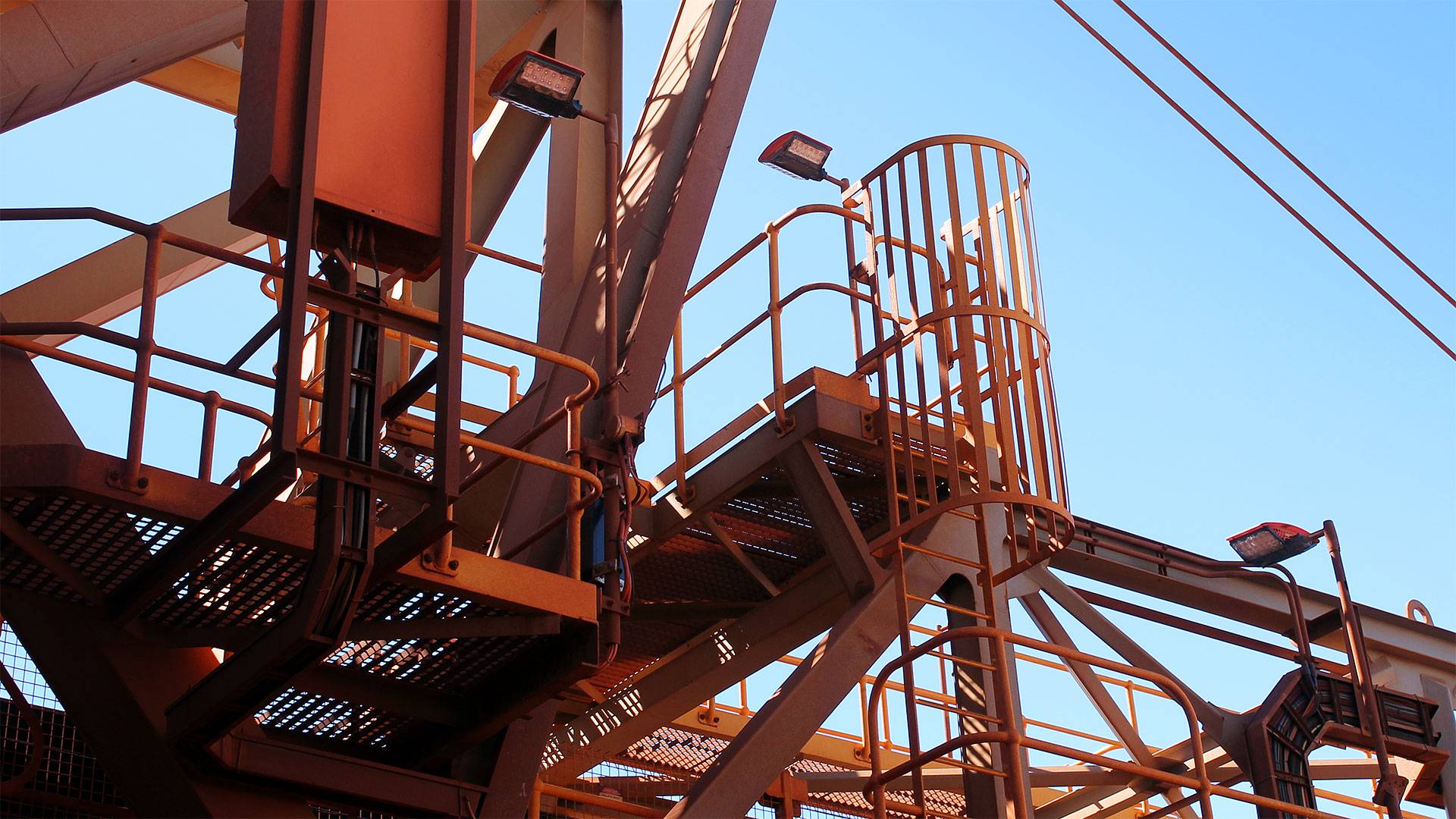

Stacker / Reclaimers
Pedestrian Access Ways

Campsite Area Lighting
General Area Lighting
Tunnels
Bulkheads

Key features

Quality uniform light
Variety of optics available
High IP and impact ratings

Option for in-built day light sensor
Various CCT choices including wildlife / turtle friendly amber

Downloads

Datasheet

Manual

IES Files

3D Model

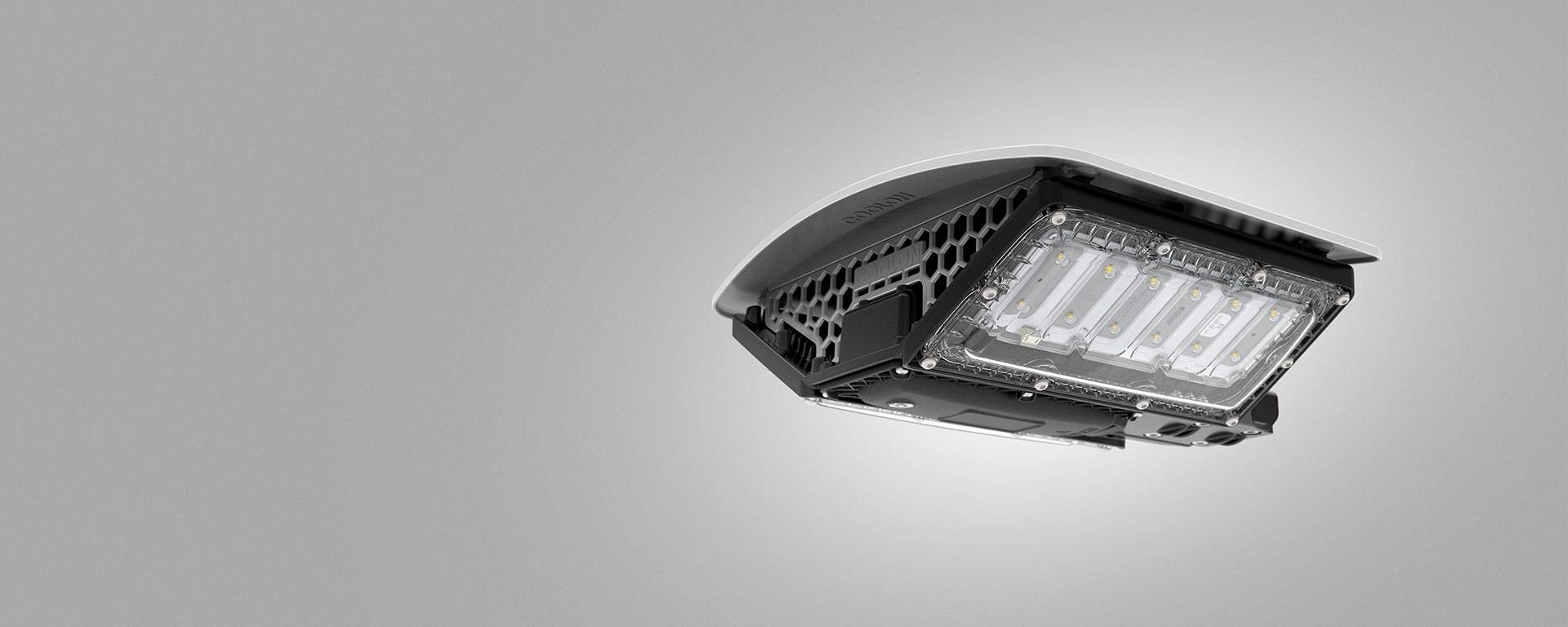

Solid body design

DLK LED conveyor / area light for mining and industrial applications, close up view on the body design

Unlike conventional conveyor lights, DLK was designed to withstand constant abuse.

Resistant to Vibration
Impact / Shock Proof
Chemical Resistant
High Pressure Washable
Unaffected by Severe Temperature Variations

Push the light further than ever before

Delivers double the illumination levels of traditional light sources, even if the lights were pushed further apart.

The DLK is designed to achieve a uniform quality of light, without dropping below 40 lux over the 12 metre area.

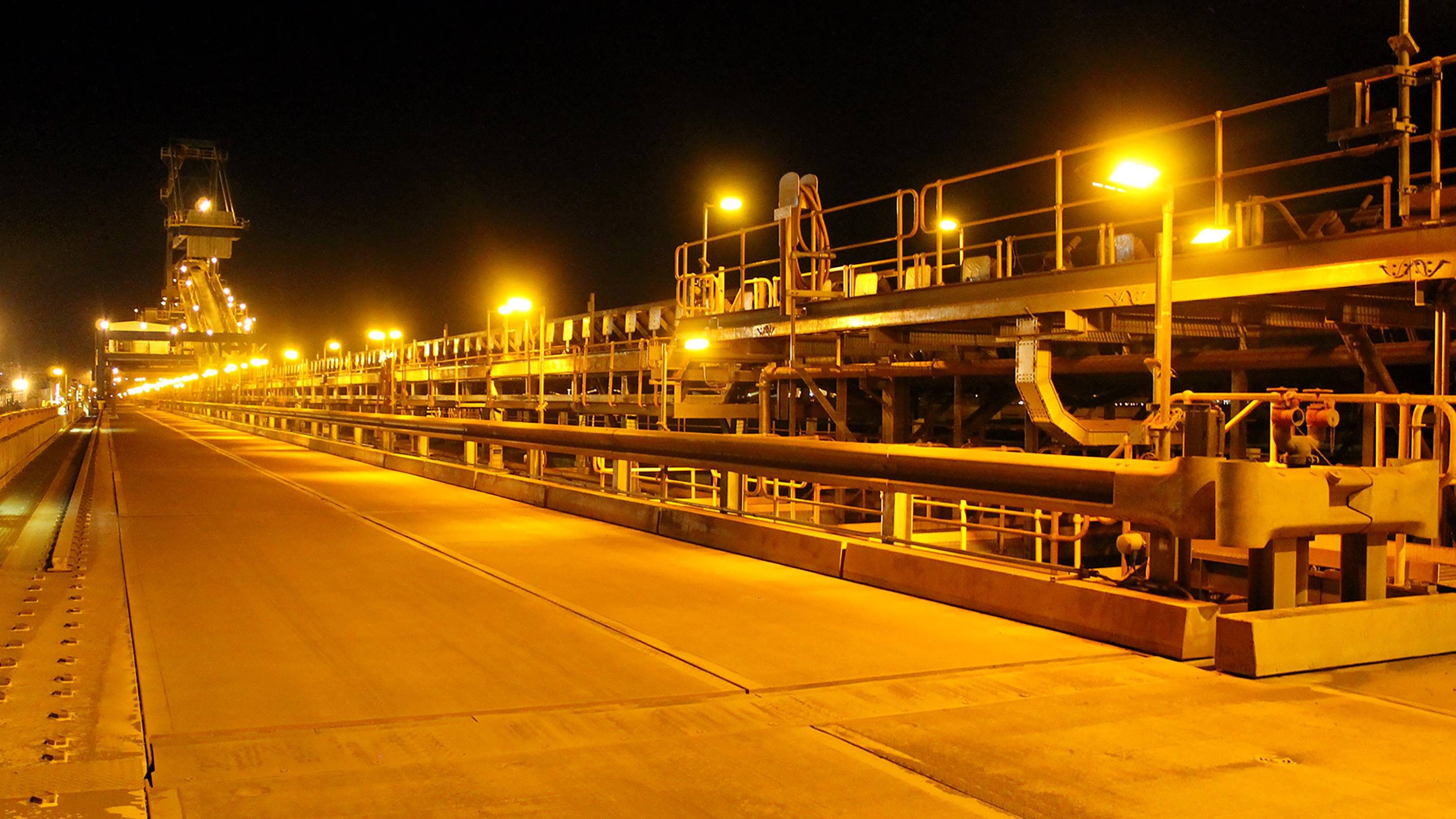

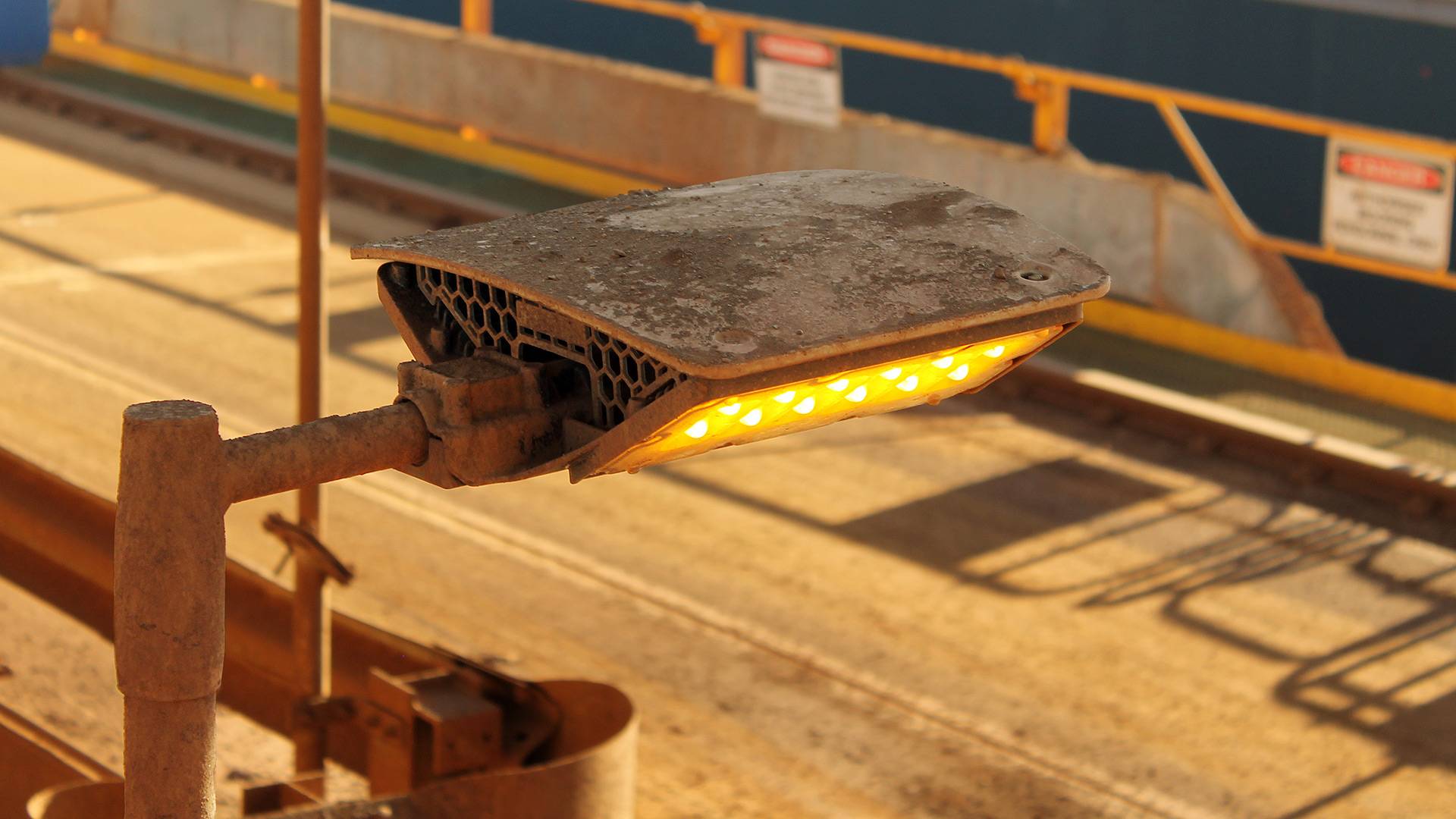

Wildlife / Turtle Friendly Amber

The DLK is available in turtle friendly Amber. In many coastal areas, white light may not be permitted for use, as it is believed to be disrupting breeding cycles of certain species of sea turtles. Coolon has specifically designed a variation of the DLK in 595nm (nanometers) Amber that is in the region of their lowest visual sensitivity.

Learn more in the Resource Hub

3 year

3 Year Warranty

Coolon luminaires are covered by a solid comprehensive manufacturer’s warranty that covers a range of possible defects and performance parameters throughout the duration of the warranty period.

Australian Made

Our products are designed and manufactured in Australia. Engineered to perfection, using only the highest quality components and highly skilled labour, each luminaire is assembled and thoroughly tested to ensure that it exceeds the highest standards.
